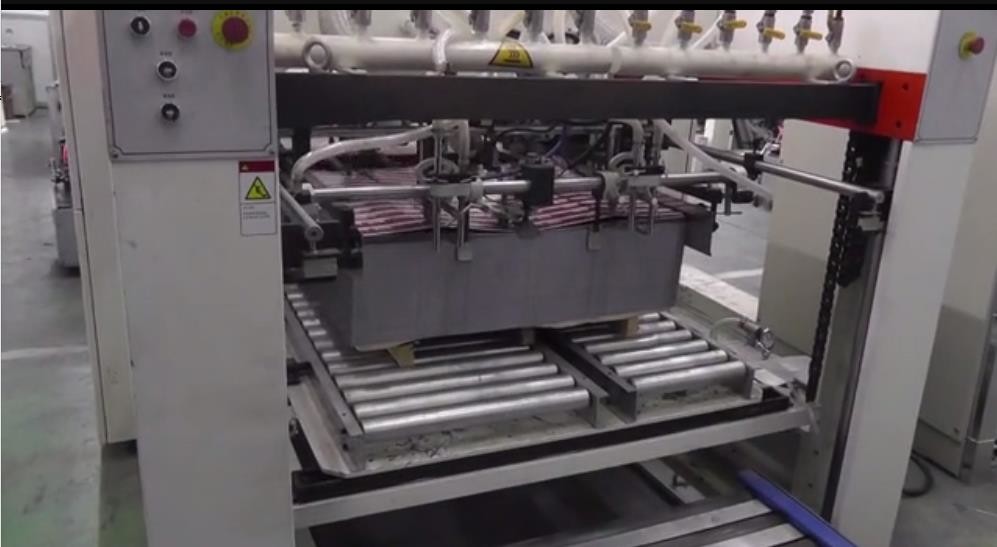

Used 45 Inches Coating Machine For Coating Line
Main technical performance:
1. The coating roller and pressure roller are driven by separate
motors;
2. The rubber drum adopts an end tooth clutch and bolt clamping,
and disassembly is controlled by a cylinder;
3. Rubber roller circumferential direction: The circumferential
position of the rubber roller can be adjusted during machine
operation, with a range of ± 11mm;
4. The coating thickness can be adjusted synchronously with a
handwheel or separately on both sides;
5. Side gauge system: fixed side: small diameter roller
positioning; Elastic side: controlled by cylinder;
6. Pushing head: Single positioning pushing head, adjusted on the
operating side through electromagnetic clutch;
7. Front gauge: There are three front gauges on the positioning
drum, which can be combined according to the requirement of leaving
space;
8. All clutch systems are controlled by cylinders;
9. The dual scraper system, combined with a wetting device, ensures
that there is no residue on the pressure drum. The disassembly and
assembly of the scraper is completed on the operating side, or a
single scraper device can be used without cleaning and without
material on the back, which can greatly reduce production costs;
10. The scraper pressure is adjusted by controlling the air
pressure;
11. The feeder (Feida) adopts an electric mechanism for synchronous
adjustment, which can be dynamically adjusted during machine
operation;.
Optional:
1. Mesh roller system
2. Electric adjustment system for pushing materials
3. Electric adjustment device for material table
4. Non stop material receiving device
5. Wave board coating device
6. Aluminum coating device
7. Cleaning device
8. Sample stage
Packing and Shipping:
The Automatic Tin Can Making Machine will be packaged in a wooden
crate, ensuring that the machine arrives in perfect condition. The
crate will then be shipped to the customer's address, using a
reliable and secure shipping service.
About our company:
Our company is a professional metal packaging machinery supplier in
China, we supply a variety of metal packaging machinery all overthe
world, that including 3-pcs can production lines, 2-pcs can
production lines, components production lines, fancy can making
lines and machinery parts, also the rawmaterial, such as
tinplate.coatings, and EOE.
Meanwhile we are also doing engineering support for our
customers,we do turn-key project, first make the solution, then
organize themachinefrom China, then to do the installation and
commissioning.
Now we have lots of successful cases all overthe customers, such as
in Germany, Holand, Poland, Turkey, South Africa and India etc.
Looking forward to be your long-term business partner.
After-sale Service:
24 hours online service,engineers available to service machinery
overseas,online support,video technical support,field installation.
